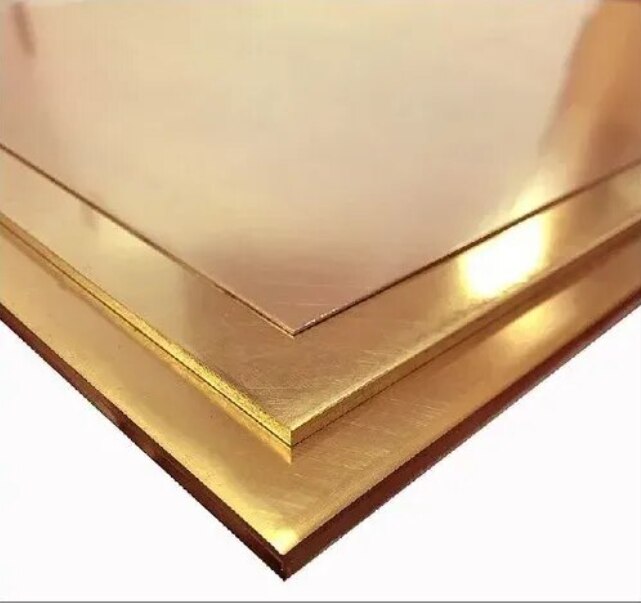

A 4x4 or 8x4 label does not tell you the thickness, alloy, temper, conductivity or finished size needed for an electrical-panel part. By checking those details and matching them to the component, fabrication method and current-carrying duty, you can choose the right sheet format and avoid unusable stock, weak bends or overheated connections.
Key takeaways
- 4x4 means 1,219.2 × 1,219.2 mm; 8x4 means 2,438.4 × 1,219.2 mm.
- Specify brass grade, temper, thickness, conductivity and surface condition.
- Choose 4x4 for smaller parts and easier handling; choose 8x4 for larger layouts.
- Request dimensions, tolerances, test certificates, packing and delivery terms in the quote.
What Do 4x4 and 8x4 Brass Sheet Sizes Actually Mean?
Indian metal-trade usage normally makes a brass sheet 4x4 a nominal 4 ft × 4 ft sheet: 1,219.2 mm × 1,219.2 mm. A brass sheet 8x4 means 8 ft × 4 ft: 2,438.4 mm × 1,219.2 mm.
A quotation written as 4x8 usually describes the same 8 ft × 4 ft area with the orientation reversed.
Confirm whether those figures are nominal, mill, or trimmed dimensions. A trimmed sheet may be smaller after edge removal, so do not calculate nesting from the label alone.
The size label says nothing about thickness, alloy, temper, flatness, or dimensional tolerance. Specify thickness in millimetres rather than relying on gauge, because gauge references vary between material and market practices.
- Define the finished part: cover, partition, mounting plate, gland plate, shroud, or bracket.
- Record the unsupported span, hole pattern, bend depth, fastener size, and required edge distance.
- Select thickness against the load and process. Thinner stock can suit covers and partitions; thicker stock provides stiffness for mounting plates, gland plates, shrouds, and brackets that need threaded holes or repeated handling.
- Confirm the quoted length, width, thickness tolerance, flatness, and edge condition before approving the material.
A sheet that looks large enough on paper can lose usable area through trimming, holes, bends, and cutting clearance. That loss matters more than the nominal 4x4 or 8x4 label.
Which Brass Grade and Electrical Properties Suit a Panel Part?
A panel drawing must name the alloy and temper; “brass” is not a material specification. C26000 cartridge brass suits cold forming and bending, while C36000 free-machining brass suits drilling, tapping and machining.
| Grade | Strength | Limitation |
|---|---|---|
| C26000 | Cold forming, bending and general fabricated parts | Conductivity is commonly published near 28% IACS, and temper changes its mechanical properties |
| C36000 | Drilling, tapping, threading and high-speed machining | Leaded composition can hinder forming, brazing and welding and may conflict with RoHS requirements |
C36000 contains several percent lead in common specifications, so request the declared composition and a RoHS declaration identifying any claimed exemption. Do not accept a seller’s statement that a product is compliant simply because it is brass. A buyer searching for brass sheet in mumbai needs the same evidence as any other buyer.
Use ASTM B36/B36M as the relevant product specification where applicable, and require the quotation to state:
- Alloy and temper
- Tensile strength, yield strength and elongation
- Thickness and thickness tolerance
- Surface condition, edge condition and test basis
C26000’s approximately 28% IACS conductivity is far below commercially pure copper. Brass therefore suits conductive hardware, terminal plates and brackets, but is not automatically a substitute for copper bus bars, earth bars or continuous-current conductors. Assess temperature rise, current capacity, joints, ventilation and enclosure conditions at assembly level under IEC 61439 design-verification requirements.
When Is 4x4 Better Than 8x4 for Panel Fabrication?
Choose 4 ft × 4 ft stock when parts fit that envelope, handling space is limited, or two smaller blanks produce less scrap and easier transport. Choose 8 ft × 4 ft stock when long parts nest along the full 2,438.4 mm length.
| Option | Best fit | Main trade-off |
|---|---|---|
| 4 ft × 4 ft | Covers, brackets and short partitions | Easier lifting, storage and packaging; may create more joints |
| 8 ft × 4 ft | Long gland plates, shrouds and repeated blanks | Fewer joints and setups; needs larger equipment and more protection |
Compare usable area after nesting, not nominal sheet area. For brass sheet 4x4 8x4 in Mumbai, include the delivered cutting cost, minimum order quantity, protective packaging, transport damage risk and the cost of trimming each blank.
Your nesting plan must state:
- Finished blank length and width
- Saw or shear kerf and edge-trimming allowance
- Bend allowance and bend orientation
- Hole margins and minimum ligament between holes
- Rolling direction when bending performance depends on it
Confirm that the fabricator’s shear, laser, punch or outsourced cutter accepts 2,438.4 mm × 1,219.2 mm stock. A machine limitation can force an extra cut, burr-producing operation or second setup, erasing the 8x4 yield advantage. If the larger sheet needs costly crating or risks corner damage in transit, two 4x4 sheets can be cheaper delivered.
How Should Brass Sheet Be Cut, Formed and Joined for Panels?
1. Shearing and punching create burrs and local distortion. Deburr every edge, then inspect hole roundness, surrounding flatness and ligament width before the part approaches insulation or touch-safe clearances.
2. Laser cutting needs control of heat discolouration, edge condition and residue. Remove slag, dross and contaminated film; a discoloured or rough edge can reduce clearance or damage insulation during assembly.
3. Drilling and tapping depend on the specified alloy and temper, correct hole diameter and thread depth. Deburr both faces so fasteners seat fully without cutting insulation or leaving exposed sharp edges.
4. Bending requires bend-allowance calculations, suitable tooling and a temper compatible with forming. A hard temper or incorrect inside radius can crack the flange or shift the hole pattern.
5. Polishing changes surface condition, so record the required finish rather than treating it as cosmetic. Soldering and brazing require clean joint faces, a compatible filler and controlled heat; poor preparation raises joint resistance and can damage nearby insulation.
6. Treat welding and other hot work as a separate hazard. Brass alloys can release zinc-containing fumes, so follow the alloy SDS, local ventilation requirements, exposure-control plan, PPE rules and hot-work procedures.
7. Compare the part with copper, aluminium, stainless steel and galvanised steel before approving brass. Copper can deliver higher conductivity, aluminium lowers weight, stainless steel improves some corrosion performance, and galvanised steel can reduce fabrication cost; joint compatibility, oxide formation and contact pressure still decide the connection.
What Should You Ask a Brass Sheet Supplier in Mumbai to Quote?
Ask a brass sheet supplier in Mumbai to quote controlled material, not simply “brass sheet 4x4” or “brass sheet 8x4.” State whether the dimensions are finished, nominal, mill, or trimmed.
- Quote 4 ft × 4 ft as 1,219.2 mm × 1,219.2 mm, or 8 ft × 4 ft as 2,438.4 mm × 1,219.2 mm; confirm whether “4x8” means the same orientation.
- Specify thickness in millimetres, thickness tolerance, alloy designation, temper, ASTM B36/B36M compliance where applicable, flatness, surface and edge condition, and length and width tolerances.
- Request heat or batch traceability and a material test certificate listing chemistry and mechanical results.
- If the part carries current, request conductivity data. Where restricted substances matter, request a RoHS declaration and identify any claimed exemption.
- For outdoor, coastal or condensation-prone panels, ask whether the alloy resists dezincification. Confirm compatibility with copper, aluminium and plated terminals, including joint finish, contact pressure and torque retention.
| Option | Ask the supplier to compare | Why it matters |
|---|---|---|
| Available stock | Batch, dimensions and defects | Faster supply, but yield may be lower |
| Made-to-order cutting | Cutting tolerance, minimum order and kerf | Better nesting, with added lead time and cost |
R Mahaveerchandra & Co. can help compare stock with made-to-order cutting, batch documents and the usable yield against your panel drawing, including packaging and delivery risk for brass sheet in Mumbai.
Related products
 | Brass Brass Sheet 8x4 – R. Mahaveerchandra & Co. R. Mahaveerchandra & Co. View product → |
 | Brass Brass Sheet 4x4 – R. Mahaveerchandra & Co. R. Mahaveerchandra & Co. View product → |
Frequently asked questions
What do brass sheet 4x4 and 8x4 mean?
A 4x4 sheet is nominally 4 ft × 4 ft, or 1,219.2 mm × 1,219.2 mm. An 8x4 sheet is nominally 8 ft × 4 ft, or 2,438.4 mm × 1,219.2 mm.
Which brass properties matter for electrical panel parts?
Specify the brass grade, sheet thickness, temper, electrical conductivity, surface condition and dimensional tolerances. The correct choice depends on whether the part is a current-carrying component, cover, bracket or fabricated fitting.
When is a 4x4 brass sheet better than an 8x4 sheet?
Choose 4x4 when the parts fit within its usable area, storage and handling are limited, or reducing offcuts matters more than maximising sheet area. Choose 8x4 when a large blank or a nested cutting layout justifies its size.
How should brass sheet be cut and joined for panels?
Plan the nesting layout, account for saw or shear allowance, deburr every cut edge and control distortion during forming. Select riveting, bolting, brazing or another joining method according to current flow, mechanical load and heat exposure.
What should you ask a brass sheet supplier in Mumbai to quote?
Provide the sheet size, thickness, brass grade, temper, quantity, dimensional tolerances, surface finish, inspection documents, packing requirements and delivery location. Ask the supplier to state whether dimensions are nominal or actual.
